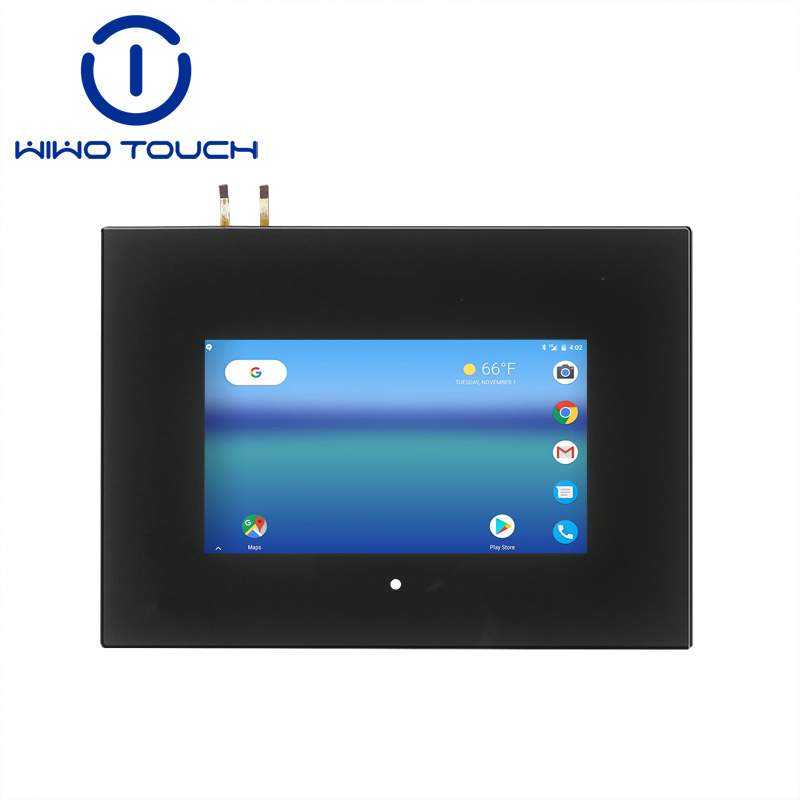

7 inch Rugged Capacitive Touch Panel for Smart Home

Category:

1.Model number: CCX070GG049 2.Application: Automotive, Medical device, Kiosk, etc 3.Structure: Glass Lens + ITO glass sensor+FPC 4.Touch type: Multi touch(can be customized) 5. Certificates: Reach, RoHS, ISO9001

Description

Product Faeture

1.Ultra-Fast Touch Response: Equipped with the GT970 IC chip, the panel achieves a response time of less than 50ms, ensuring smooth, lag-free operation for end-users. This is especially critical for smart home control , reducing user complaints and return rates for your products.
2.All-Weather Durability: Beyond the standard operating temperature range (-20℃~+70℃), the panel’s sealed structure (compatible with waterproof surface treatment) resists dust, moisture, and minor impacts.
3.Wide Compatibility with Displays: The flexible LCD resolution (TBD based on your needs) and standard IIC interface allow seamless integration with 7-inch LCD modules from major suppliers.
4.Anti-Interference Performance: The panel's advanced signal filtering technology reduces interference from nearby electronic devices. This ensures stable touch operation even in crowded IoT environments.

Product Parameter

Product name	7 Inch Capacitive touch panel
Brand Name	WIWOTOUCH
Touch type	Multi touch(can be customized)
Application	Smart control, Automotive, Industrial control, etc
Interface Type	IIC
Structure	Glass Lens+ ITO Glass+FPC
Cover Glass Dimension	240.70±0.1*172.90±0.1 mm
Cover Lens VA	154.86±0.15*86.53±0.15 mm
Cover Lens Thickness	1.1mm
ITO Glass Thickness	0.55mm
Total Thickness	1.85±0.1 mm
General Tolerance	±0.2 mm
LCD Resolution	TBD(As you need)
IC Model	GT970
Transmittance	≥85%
Surface Hardness	6H
Operating Environment	-20℃~+70℃,≤90% RH
Operating Environment	-30℃~+80℃,≤90% RH
Operating Voltage	2.8 V-3.3 V
Interface Voltage	2.8 V-3.3 V
Surface treatment	As your need.
General Tolerance	AR(Anti-reflective); AF(Anti-fingerprint); AG(Anti-glare); waterproof
Available operating systems	Android/Linux/Windows/Raspberry PI
Certificates	RoHS/Reach/ISO9001
Sample delivery	15 working days
Mass production delivery	2-4 weeks, according to customer requirements, the delivery time is slightly changed
Guarantee period	12 months
Packing	Plastic tray or antistatic bag or foam box or vacuum bag + carton

Procurement-Centric Services

1. Delivery & Lead Time

Sample Delivery: 15 working days (fast prototyping to test compatibility)

Mass Production Delivery: 4 weeks (adjustable based on order quantity—contact us for customized timelines)

No unexpected delays: We maintain raw material stock to ensure quick response to your urgent orders.

2.Quality Assurance & Warranty

12-month guarantee period: Free replacement for defective panels (no cost for repair/replacement during warranty)

100% pre-shipment inspection: Each batch undergoes strict testing for touch sensitivity, durability, and electrical performance to avoid defective products reaching your factory.

3. Packaging & Logistics

Customizable packaging: Plastic tray, antistatic bag, foam box, or vacuum bag + carton (protects panels during shipping, reducing transit damage and return costs)

Global shipping support: We partner with reliable logistics providers to deliver to your warehouse—whether in Asia, Europe, North America, or other regions.
