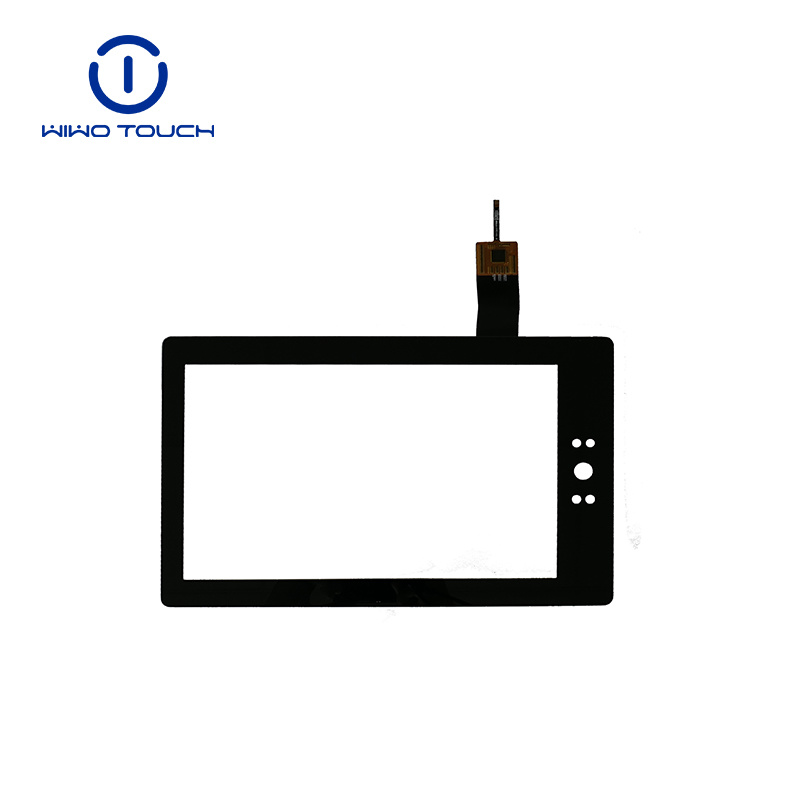

10.1 inch capacitive touch panel for automation equipment

Category:

1. Model number of quality 10.1 inch touch screen: 086ACLS101GG 2. Structure: Glass Lens+ITO Glass+FPC 3. Touch type: Single-touch or Multi touch 4. Application: Smart control, Industrial, Intelligent robots, Handheld device, etc 5. Interface type: IIC control 6. Color: Black

Description

Product Feature

Advanced Surface Treatment: Equipped with AR (Anti-reflective), AF (Anti-fingerprint), AG (Anti-glare), and waterproof surface treatments, ensuring clear display and easy maintenance in different working conditions.
Wide Operating Temperature Range: Functions stably in the operating environment of -20℃~+70℃, ≤90%RH, and can be stored in -30℃~+80℃, ≤90%RH, adapting to various extreme temperature scenarios.
High Compatibility: Compatible with Android, Linux, and Windows operating systems, facilitating seamless integration into different automation equipment systems.
Reliable Performance: With an operating voltage and interface voltage of 2.8 V-3.3 V, it ensures stable power supply. The IC Model FT5526 guarantees efficient touch response.

product parameter

Product name	10.1 inch capacitive touch screen
Brand Name	WIWOTOUCH
Material	Sodalime, Chemical Reinforcement
Touch type	PCAP 10 points touch (Can be customized)
Application	Industrial, Handheld device, Smart control, etc
Interface type	IIC/USB
Structure	Glass Lens+ITO Glass+FPC
Cover Glass Dimension	265.1±0.1*172.7±0.1 mm
Cover Lens VA	218.16±0.2*136.8±0.2 mm
Cover Glass Thickness	1.8±0.1 mm
ITO Glass Thickness	0.55±0.05 mm
Total Thickness	2.55±0.2 mm
LCD resolution	TBD (As you need)
FPC	6 PIN
IC Model	FT5526
Transmittance	≥85%
Surface Hardness	6H
Operating Environment	-20℃~+70℃,≤90%RH
Storage Environment	-30℃~+80℃,≤90%RH
Operating Voltage	2.8 V-3.3 V
Interface Voltage	2.8 V-3.3 V
Surface treatment	AR(Anti-reflective); AF(Anti-fingerprint); AG(Anti-glare); waterproof
General Tolerance	±0.2mm
Available operating systems	Android/Linux/Windows
Certificates	RoHS/Reach/ISO9001
Sample delivery	15 working days
Mass production delivery	2-4 weeks, according to customer requirements, the delivery time is slightly changed
Guarantee period	12 months
Packing	Plastic tray or antistatic bag or foam box or vacuum bag + carton

Customization Options

Touch Points: The PCAP touch points can be customized according to your specific needs.
Interface Type: Choose between IIC and USB interfaces based on your system compatibility.
LCD Resolution: Tailor the LCD resolution to meet your display requirements.
Surface Treatment: Select from AR, AF, AG, and waterproof surface treatments as per your working environment.

Application Scenarios

This touch panel is widely applicable in various fields:

Industrial Control: It can be integrated into industrial control systems to enable convenient operation and monitoring.
Handheld Devices: Suitable for handheld industrial devices, providing a responsive touch experience.
Smart Control Systems: Used in smart control systems for homes, buildings, etc., enhancing the user experience.
