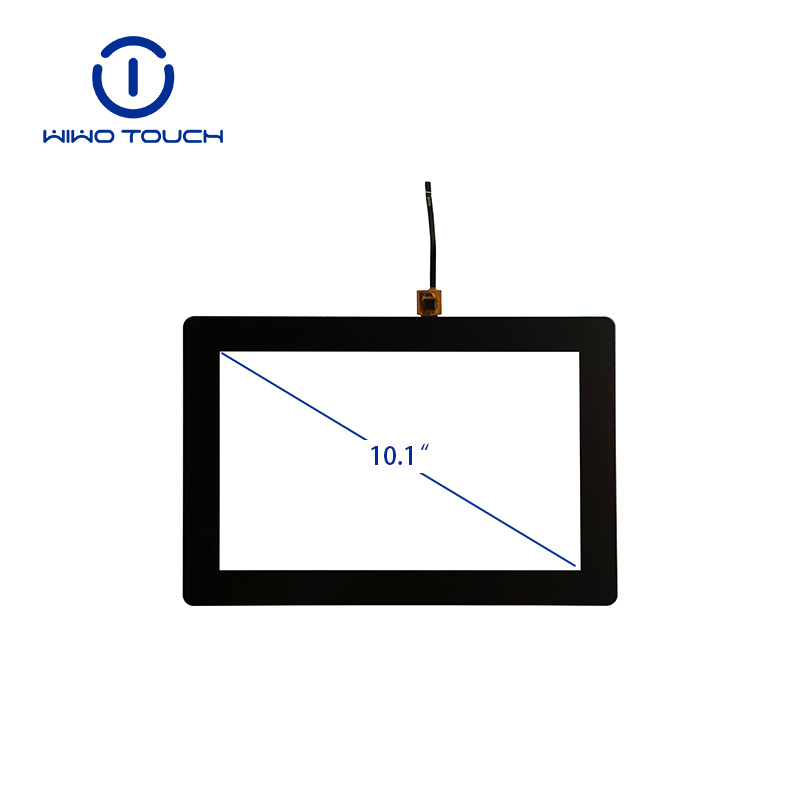

10.1 inch capacitive touch panel for medical equipment

Category:

1. Model number of quality 10.1 inch touch screen: 106ACTL101GG 2. Structure: Glass Lens+ITO Glass+FPC 3. Touch type: Single-touch or Multi touch 4. Application: Smart control, Industrial, Intelligent robots, Handheld device, etc 5. Interface type: IIC control 6. Color: Black

Description

Product Feature

Medical-grade Protection: Passes IP65 certification (in line with IEC 60529 standard), the surface uses chemically strengthened soda-lime glass (2±0.1mm), which can withstand high-frequency wiping with chlorine-containing disinfectants, ensuring long-term stable operation in harsh medical environments.

Precise Interaction: Adopts PCAP 10-point touch technology with a touch accuracy of 2mm, supporting operation with gloves and anti-palm design, which is convenient for medical staff to operate efficiently during the work process.

Wide Temperature Stability: Operates in the environment of -20℃~+70℃, adapting to extreme environments such as operating rooms and ICUs, ensuring stable performance even in temperature fluctuations.

Optical Performance: With ≥85% light transmittance and AR/AF/AG triple coating, it reduces reflection interference, improves the clarity of image diagnosis, and provides clear visual effects for medical display.

Product Parameter

Product name	10.1 inch capacitive touch screen
Brand Name	WIWOTOUCH
Material	Sodalime, Chemical Reinforcement
Touch type	PCAP 10 points touch (Can be customized)
Application	Industrial, Handheld device, Smart control, etc
Interface type	IIC/USB
Structure	Glass Lens+ITO Glass+FPC
Cover Glass Dimension	261.3±0.2*180.3±0.2 mm
Cover Lens VA	217.96*136.6 mm
Cover Glass Thickness	2±0.1 mm
ITO Glass Thickness	0.7 mm
Total Thickness	2.9±0.1 mm
LCD resolution	1280*800
FPC	6 PIN
IC Model	FT5426
Transmittance	≥85%
Surface Hardness	6H
Operating Environment	-20℃~+70℃,≤90%RH
Storage Environment	-30℃~+80℃,≤90%RH
Operating Voltage	2.8 V-3.3 V
Interface Voltage	2.8 V-3.3 V
Surface treatment	AR(Anti-reflective); AF(Anti-fingerprint); AG(Anti-glare); waterproof
General Tolerance	±0.2mm
Available operating systems	Android/Linux/Windows
Certificates	RoHS/Reach/ISO9001
Sample delivery	15 working days
Mass production delivery	2-4 weeks, according to customer requirements, the delivery time is slightly changed
Guarantee period	12 months
Packing	Plastic tray or antistatic bag or foam box or vacuum bag + carton

Product Application

Imaging Diagnostic Equipment
Supports DICOM grayscale standards, and cooperates with medical styluses to realize medical record annotation and image labeling, facilitating doctors to accurately diagnose and analyze medical images.
Mobile Nursing Terminal
IP65 protection resists alcohol wiping, and 10-point touch supports multi-person collaborative operation of patient information systems, improving the efficiency of nursing work.
Surgical Navigation System
With -20℃ low-temperature startup characteristics, it adapts to the constant temperature environment of the operating room, and the surface hardness of 6H prevents instrument collision, ensuring the smooth progress of surgical navigation.

Customization Services

Support customized services such as cover glass thickness (2mm/3mm), interface type (new HDMI option), and antibacterial coating (test data to be supplemented) to meet the individual needs of different customers.

Supply Chain Guarantee

Sample delivery: 15 working days (including international logistics)

Mass production cycle: 2-4 weeks (According to the order, there are corresponding changes.)

Minimum order quantity (MOQ): 500 pieces, bulk purchase enjoys tiered discounts

After-sales Guarantee

12-month warranty period, providing free technical support to solve customer worries.
