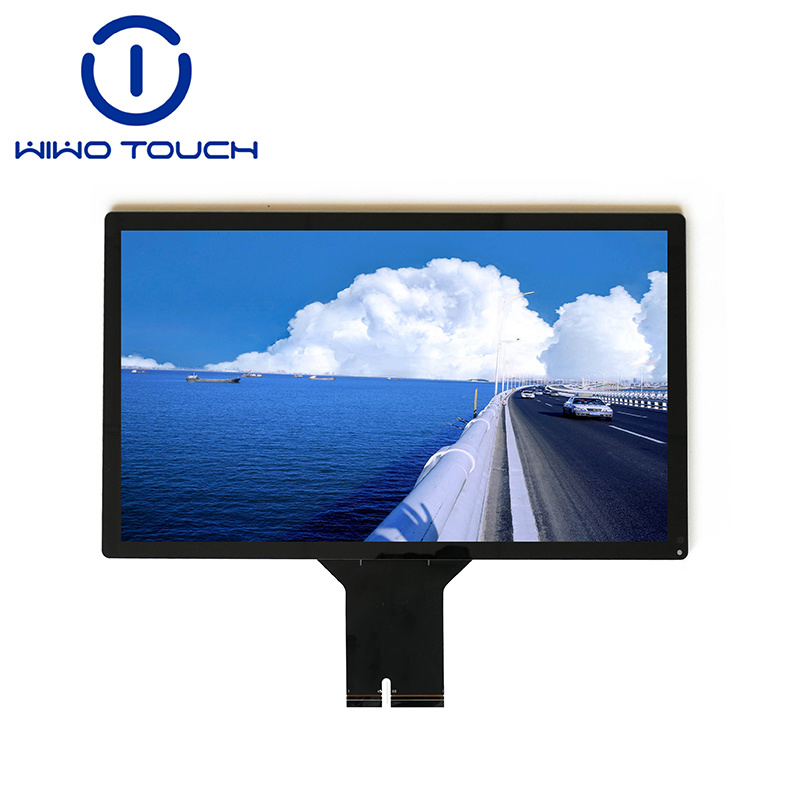

15.6 inch capacitive touch panel for industrial

Category:

Capacitive touch panel

Inquiry

PDF

NO.: 145ACLL156GG-V2.0-TP Type: LCD + capacitive touch panel Touch panel IC interface: USB Controller board: ILI2511

Description

Product Feature

1.Durable structural design
Chemically strengthened materials are used, with a surface hardness reaching 6H, ensuring long-term stable performance even in harsh environments. This feature can reduce equipment maintenance costs and is highly suitable for industrial high-frequency usage scenarios, minimizing downtime losses caused by touchscreen damage and providing a solid foundation for large-scale deployment. Please provide the text you want to be translated.

2.Wide environmental adaptability
It can operate reliably within a temperature range of -20℃ to +70℃ and a humidity level of ≤90% RH, with a light transmittance of ≥85%. Whether in cold industrial workshops, humid medical environments or variable outdoor locations, this touchscreen can perform stably and meet the usage requirements of demanding environments such as medical and outdoor smart devices. Please provide the text you want to be translated.

3.Flexible customization solutions
It features multi-touch customization capabilities, and the LCD resolution can be adjusted according to requirements. Customers can flexibly customize parameters such as the number of touch points and resolution based on the specific specifications of their own devices to ensure perfect compatibility between the touch screen and the device, without worrying about compatibility issues.

Product Parameter

Product name	15.6 Inch projected capacitive touch screen
Brand Name	WIWOTOUCH
Touch type	Multi touch(can be customized)
Application	Smart control, Medical, Industrial control, etc
Material	Chemical Reinfocement
Interface type	USB
Color	Black
Structure	Glass Lens+ITO sensor+FPC
Cover Glass Dimension	384.6±0.3*235.6±0.3 mm
Cover Lens VA	344.8*194.2 mm
Cover Lens Thickness	1.8 mm
Film sensor Thickness	0.7 mm
SCA	0.2 mm
Total Thickness	2.7±0.2 mm
LCD resolution	TBD(As you need)
IC Model	EXC80W60
FPC	90 PIN
Transmittance	≥85%
Surface Hardness	6 H
Operating Environment	-20℃~+70℃,≤90%RH
Storage Environment	-30℃~+80℃,≤90%RH
Operating Voltage	2.8 V-3.3 V
Interface Voltage	2.8 V-3.3 V
Surface treatment	As you need
General Tolerance	±0.2mm
Available operating systems	Android/Linux/Windows/Raspberry PI
Certificates	RoHS/Reach/ISO9001
Sample delivery	15 working days
Mass production delivery	2-4 weeks, according to customer requirements, the delivery time is slightly changed
Guarantee period	12 months
Packing	Plastic tray or antistatic bag or foam box or vacuum bag + carton

Application scenarios

1.Industrial control field
The multi-point touch function can significantly enhance operational efficiency. Its wide temperature range enables stable operation in complex temperature environments in factories, and its strong anti-interference ability ensures precise control during industrial production processes, reducing operational errors and improving production efficiency.

2.Medical equipment field
The 6H hardness surface is easy to disinfect and clean, meeting the hygiene standards of medical equipment. The high light transmittance ensures the clarity of displayed content, facilitating accurate information reading by medical staff. In various medical scenarios, it can provide stable and reliable touch experiences for equipment, assisting in the smooth progress of medical work.

3.Smart control system field
Compatible with multiple systems such as Android and Linux, it can be easily integrated into smart home central control screens and other devices. Supports batch customization, enabling personalized adjustments according to the needs of different smart control systems, bringing users a convenient and intelligent operation experience.

Procurement and Cooperation Process

1.Sample
We can provide samples and deliver them within 25 working days. You can test the compatibility of the touchscreen before bulk purchasing to ensure the product meets your expectations and reduces the purchasing risk.

2.Bulk Order
We support bulk orders ranging from 500 to 10,000 pieces. The larger the order quantity, the more favorable the wholesale price you can enjoy. We will prioritize production based on the order quantity to ensure timely delivery.

3.Customization Process
We follow the process of demand confirmation → scheme design → sample testing → batch production. We offer various customization services such as FPC interface, touch point number, etc., to meet your personalized purchasing needs and make the product more suitable for actual application scenarios.

4.Packaging and Logistics
We use plastic pallets, anti-static bags, foam boxes or vacuum bags combined with cardboard boxes for packaging. The anti-static packaging ensures the safety of the product during transportation. We provide door-to-door logistics services to make your receipt process more convenient.
