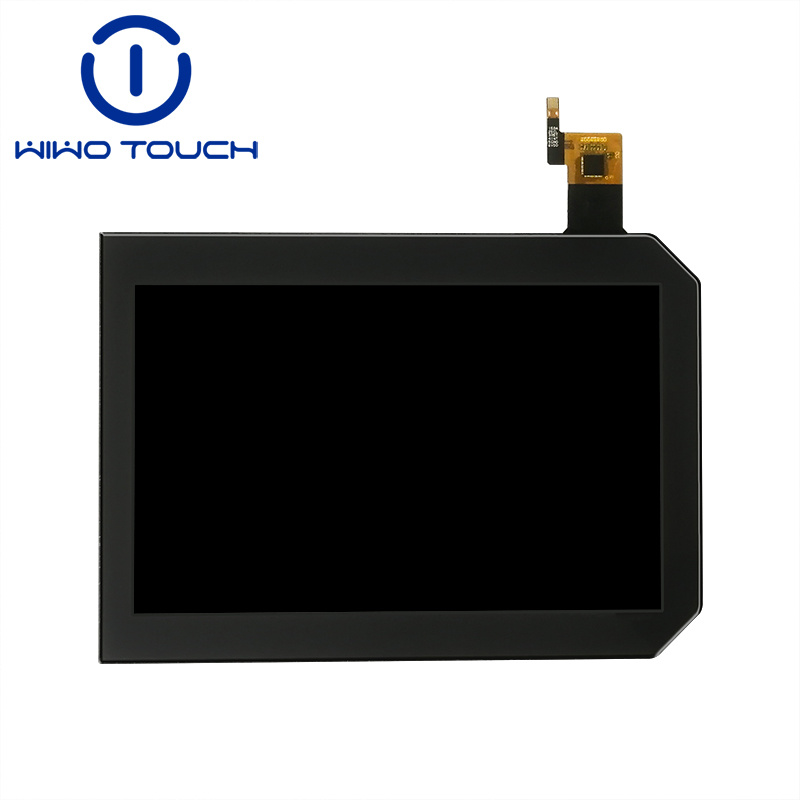

Rugged 7 inch capacitive touch panel

Category:

1. Model number:C4D070GG087 2. Structure: Glass lens+ITO glass+FPC 3. Certificate: RoHS, Reach, ISO9001 4. Application: Medical, Industrial, Kiosk, etc 5. Interface type: IIC 6. Shipment method: DHL EMS UPS TNT FEDEX

Description

Product Feature

1.Surface hardness reaches 6H: resistant to scratching and wear, capable of withstanding collisions and friction during daily operations, preventing equipment downtime due to panel damage and reducing the frequency of subsequent replacement and procurement;
2.Wide temperature range adaptation: stable operation in an Operating Environment (-20℃ to +70℃), maintaining performance in a Storage Environment (-30℃ to +80℃), suitable for harsh conditions such as high-temperature workshops and low-temperature warehouses, without the need for additional temperature control equipment, reducing procurement and integration costs;
3.High light transmittance guarantee: Transmittance ≥ 86%, without visual deviation, combined with high-definition display screens can present clear images, meeting the display precision requirements of procurement scenarios such as medical diagnosis and industrial precise operations.

Product Parameter

Brand Name	WIWOTOUCH
Touch type	Multi touch
Application	Medical, Industrial, Smart control, etc
Interface type	IIC
Structure	Glass Lens+ITO Glass+FPC
Cover Glass Dimension	173±0.1*124.4±0.1 mm
Cover Lens VA	150.76±0.15*94.6±0.15 mm
Cover Lens Thickness	1.1 mm
ITO Glass Thickness	0.7 mm
Total Thickness	2±0.1mm
FPC	6 PIN
IC Model	GT911
Transmittance	≥86%
Surface Hardness	6H
Operating Environment	-20℃~+70℃,≤90%RH
Storage Environment	-30℃~+80℃,≤90%RH
General Tolerance	±0.2mm
Sample delivery	15 working days
Mass production delivery	2-4 weeks, according to customer requirements, the delivery time is slightly changed
Guarantee period	12 months
Packing	Plastic tray or antistatic bag or foam box or vacuum bag + carton

Procurement Support

1.Fast sample delivery: We offer a Sample delivery service within 15 working days. Purchasers can quickly obtain samples for performance testing and size compatibility verification, thereby shortening the procurement decision-making cycle;
2.Mass customized production: The Mass production delivery cycle only takes 2-4 weeks, and the delivery time can be adjusted according to the purchasing requirements; Support FPC (flexible circuit board) interface customization (default 6 PIN), packaging scheme customization (optional Plastic tray, antistatic bag, foam box, vacuum bag + carton), meeting different scale requirements such as small batch trial production and large batch stable procurement;
3.Comprehensive after-sales guarantee: Provide a 12-month Guarantee period. Our professional technical team is available 7*24 hours to provide installation guidance and fault troubleshooting support, eliminating post-purchase worries.、
