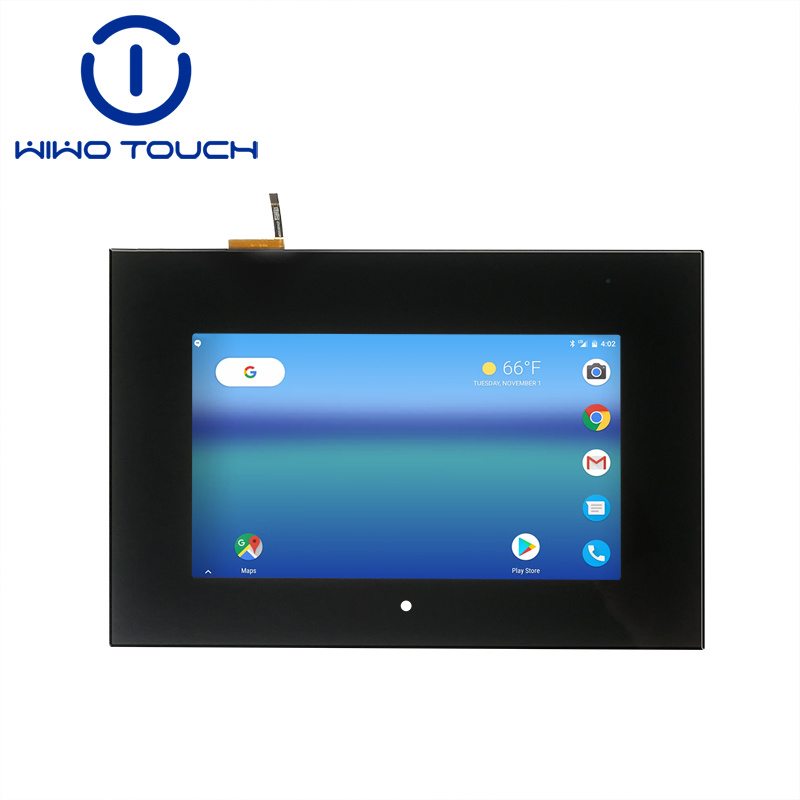

8 inch capacitive touch panel for smart home
1. Model number :CCX080GG44-V1.0 2. Structure: Glass Lens+ITO Glass+FPC 3. Touch type: Multi-touch 4. Application: Smart control, Medical, Automotive, Handheld device, etc 5. Interface type: IIC Cheap 8 inch smart control screen Precise PCAP 10-Point Touch Technology: Our touch panel utilizes advanced Projected Capacitive (PCAP) technology with 10-point touch support. This ensures smooth, accurate, and responsive touch interactions, allowing users to effortlessly control their smart home devices. Whether it's adjusting the thermostat, controlling the lighting, or managing security systems, every touch is registered with pinpoint precision. Versatile Application Range: While ideal for smart home applications, this touch panel is not limited to just that. It can also be used in industrial settings, handheld devices, and other smart control applications. Its adaptability makes it a valuable asset for procurement managers looking for a multi-purpose solution. Multiple Interface Options: With IIC/USB interfaces, integrating the WIWOTOUCH 8-inch touch panel into your existing smart home infrastructure is a breeze. These interfaces provide reliable data transfer and power supply, ensuring seamless communication between the touch panel and other devices in your network. Product Parameter Product name 8 inch smart control screen Brand Name WIWOTOUCH Touch type PCAP 10 points touch Application Industrial, Handheld device, Smart control, etc Interface type IIC/USB Structure Glass Lens+ITO Glass+FPC Cover Glass Dimension 248±0.1*165±0.1 mm Sensor Dimension 188.64*111.36 mm Cover Lens VA 177.64±0.15*100.36±0.15 mm Cover Lens Thickness 1.1±0.1 mm ITO Glass Thickness 0.55±0.05 mm Total Thickness 1.85±0.2 mm LCD resolution TBD(As you need) FPC 6 PIN IC Model GT9110 Transmittance ≥86% Surface Hardness 6H Operating Environment -20℃~+60℃,≤20～85%RH Storage Environment -30℃~+70℃,≤10～95%RH Operating Voltage 2.8 V-3.3 V Interface Voltage 2.8 V-3.3 V Surface treatment AR(Anti-reflective); AF(Anti-fingerprint); AG(Anti-glare); waterproof General Tolerance ±0.2mm Available operating systems Android/Linux/Windows Certificates RoHS/Reach/ISO9001 Sample delivery 15 working days Mass production delivery 2-4 weeks, according to customer requirements, the delivery time is slightly changed Guarantee period 12 months Packing Plastic tray or antistatic bag or foam box or vacuum bag + carton Customizable to Your Needs LCD Resolution: The LCD resolution of the touch panel is TBD (As you need). This means that you can choose the resolution that best suits your smart home application, whether it's a high-definition display for media control or a standard resolution for basic control functions. Available Operating Systems: The touch panel is compatible with Android/Linux/Windows operating systems, giving you the flexibility to choose the platform that best fits your smart home ecosystem. This compatibility also makes it easier to integrate with other devices and software in your home. Global Standards Compliance Certificates: The WIWOTOUCH 8-inch touch panel is RoHS/Reach/ISO9001 certified. These certifications ensure that the product meets international environmental and quality standards, giving you peace of mind when making a procurement decision.
Description
Key Features for Smart Home
- Precise PCAP 10-Point Touch Technology: Our touch panel utilizes advanced Projected Capacitive (PCAP) technology with 10-point touch support. This ensures smooth, accurate, and responsive touch interactions, allowing users to effortlessly control their smart home devices. Whether it's adjusting the thermostat, controlling the lighting, or managing security systems, every touch is registered with pinpoint precision.
- Versatile Application Range: While ideal for smart home applications, this touch panel is not limited to just that. It can also be used in industrial settings, handheld devices, and other smart control applications. Its adaptability makes it a valuable asset for procurement managers looking for a multi-purpose solution.
- Multiple Interface Options: With IIC/USB interfaces, integrating the WIWOTOUCH 8-inch touch panel into your existing smart home infrastructure is a breeze. These interfaces provide reliable data transfer and power supply, ensuring seamless communication between the touch panel and other devices in your network.
Product Parameter
| Product name | 8 inch smart control screen |
| Brand Name | WIWOTOUCH |
| Touch type | PCAP 10 points touch |
| Application | Industrial, Handheld device, Smart control, etc |
| Interface type | IIC/USB |
| Structure | Glass Lens+ITO Glass+FPC |
| Cover Glass Dimension | 248±0.1*165±0.1 mm |
| Sensor Dimension | 188.64*111.36 mm |
| Cover Lens VA | 177.64±0.15*100.36±0.15 mm |
| Cover Lens Thickness | 1.1±0.1 mm |
| ITO Glass Thickness | 0.55±0.05 mm |
| Total Thickness | 1.85±0.2 mm |
| LCD resolution | TBD(As you need) |
| FPC | 6 PIN |
| IC Model | GT9110 |
| Transmittance | ≥86% |
| Surface Hardness | 6H |
| Operating Environment | -20℃~+60℃,≤20～85%RH |
| Storage Environment | -30℃~+70℃,≤10～95%RH |
| Operating Voltage | 2.8 V-3.3 V |
| Interface Voltage | 2.8 V-3.3 V |
| Surface treatment | AR(Anti-reflective); AF(Anti-fingerprint); AG(Anti-glare); waterproof |
| General Tolerance | ±0.2mm |
| Available operating systems | Android/Linux/Windows |
| Certificates | RoHS/Reach/ISO9001 |
| Sample delivery | 15 working days |
| Mass production delivery | 2-4 weeks, according to customer requirements, the delivery time is slightly changed |
| Guarantee period | 12 months |
| Packing | Plastic tray or antistatic bag or foam box or vacuum bag + carton |
Customizable to Your Needs
- LCD Resolution: The LCD resolution of the touch panel is TBD (As you need). This means that you can choose the resolution that best suits your smart home application, whether it's a high-definition display for media control or a standard resolution for basic control functions.
- Available Operating Systems: The touch panel is compatible with Android/Linux/Windows operating systems, giving you the flexibility to choose the platform that best fits your smart home ecosystem. This compatibility also makes it easier to integrate with other devices and software in your home.
Global Standards Compliance
- Certificates: The WIWOTOUCH 8-inch touch panel is RoHS/Reach/ISO9001 certified. These certifications ensure that the product meets international environmental and quality standards, giving you peace of mind when making a procurement decision.
