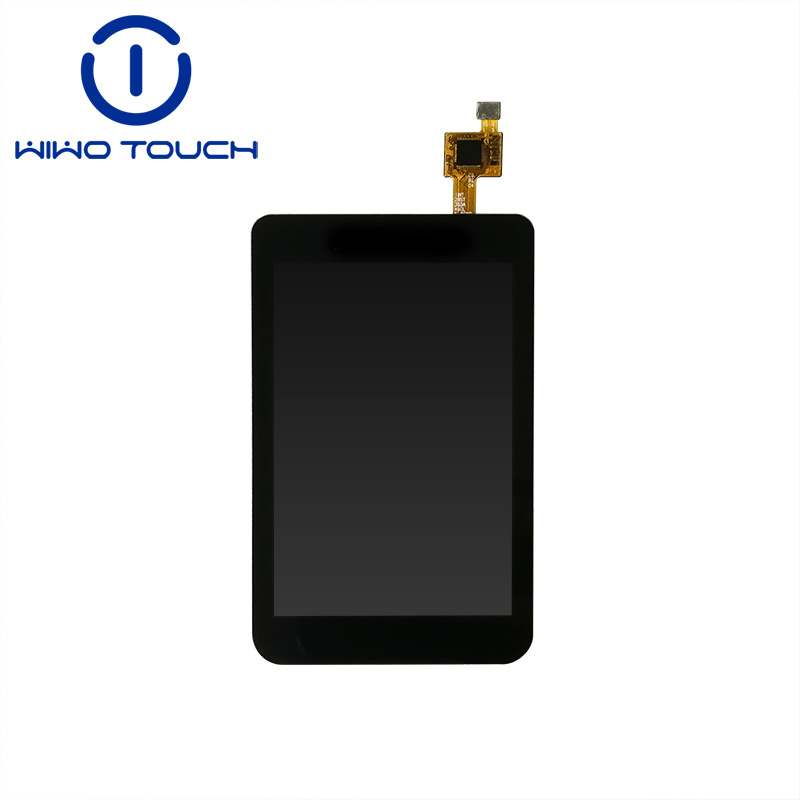

Customizable 3.5-inch projected capacitive touchscreen

Category:

1.Model number: CSK035GG098-V1.0 2.Application: Smart control, Medical equipment, Industrial control, etc 3.Structure: Glass Lens + ITO glass sensor+FPC 4.Touch type: Multi touch(can be customized) 5. Certificates: Reach, RoHS, ISO9001

Description

In the dynamic field of industrial and automotive applications, the 3.5-inch projected capacitive touchscreen from WIWO TOUCH Technology has become a model of versatility and reliability. This touchscreen is meticulously designed and features numerous innovative functions, completely revolutionizing the interaction method.

Technical Specifications

1.High - Quality Materials
Constructed with soda - lime material, our touch screen guarantees robustness and longevity. The glass lens, ITO sensor, and FPC structure (Glass Lens + ITO sensor + FPC) work in harmony to deliver exceptional performance. The 0.55 mm cover lens thickness, 0.4 mm film sensor thickness, and 0.2 mm SCA contribute to a total thickness of 1.4 ± 0.1 mm, making it compact yet highly functional.

2.Superior Optical and Mechanical Properties
With a transmittance of ≥86%, the touch screen ensures bright and clear visuals, even in challenging lighting conditions. The 6H surface hardness provides excellent protection against daily wear and tear, making it suitable for heavy - duty industrial and automotive use.

3.Wide Operating Environment
Engineered to perform in extreme conditions, the touch screen has an operating environment range of - 20℃~+70℃ and can withstand humidity levels of ≤90% RH. The storage environment can go as low as - 30℃ and as high as +80℃, with the same humidity tolerance, ensuring that it remains operational and reliable in diverse settings.

4.Optimal Electrical Parameters
Operating and interface voltages are set at 2.8 V - 3.3 V, providing energy - efficient operation without compromising on performance. The FT5436 IC model and 10 - PIN FPC further enhance the touch screen's electrical performance and connectivity.

Customized Services

1.Multi-touch Customization Function

Different projects require different touch functions. Whether it is for high-end automotive infotainment systems that demand seamless gesture control, or for industrial control panels that require multi-user input, touch response can be precisely adjusted to the perfect state.

2.LCD Resolution

Through the LCD resolution that can be set according to your needs (to be determined), our touch screens ensure that every detail can be clearly presented. From complex intelligent control interfaces to detailed car dashboards, the resolution can be calibrated to provide the best viewing experience.

3.Surface Treatment Options
Our touch screens offer surface treatment options according to your requirements, such as AG, AR, and AF. In harsh industrial environments, the sturdy surface treatment can enhance durability, scratch resistance, and resistance to chemical substances.

Unconstrained procurement services

1. Quick sample and large-scale production delivery
We can provide sample delivery services within approximately 15 working days, allowing you to test the performance of the touchscreen before placing a large order. For large-scale production, the delivery time is 4-5 weeks, and it can be adjusted according to customer needs.

2. 12-month warranty
With a 12-month warranty support, you can be confident in the quality and durability of our 3.5-inch touch screen. In case of any problems, our professional customer support team will immediately collaborate with you to solve them.

3. Flexible packaging options
To ensure safe transportation, we offer various packaging options, including plastic pallets, anti-static bags, foam boxes or vacuum bags. All packaging is placed in sturdy cardboard boxes.
