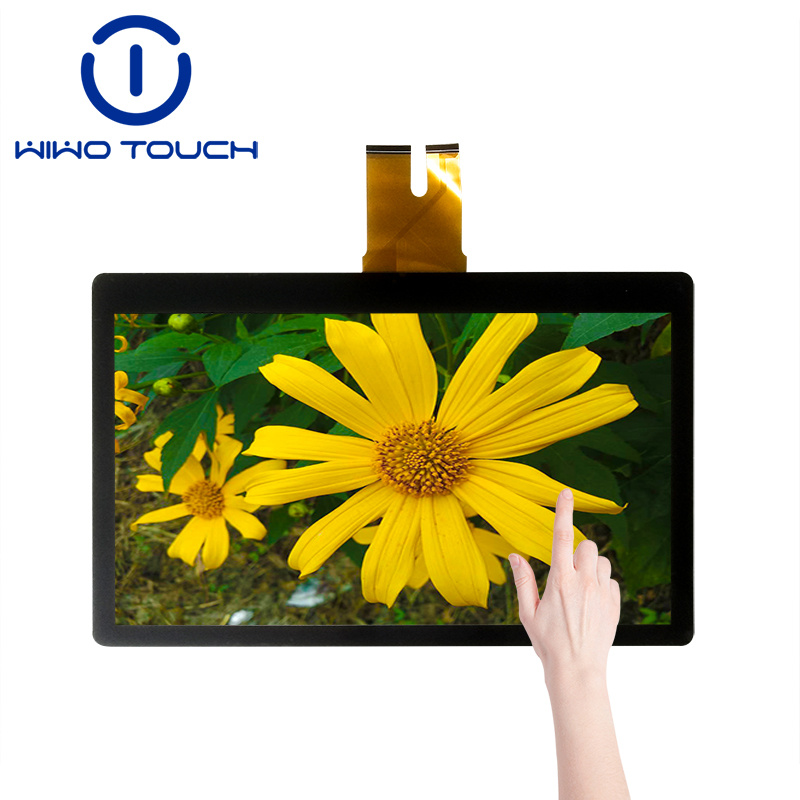

15.6-inch sturdy and durable capacitive touch screen

Category:

1.Model number: CSR156GG135-V1.0 2.Application: Smart control, Medical equipment, Industrial control, etc 3.Structure: Glass Lens + ITO glass sensor+FPC 4.Touch type: Multi touch(can be customized) 5. Certificates: Reach, RoHS, ISO9001

Description

In the fast-paced environment, the demand from customers for high-quality and reliable touch screens continues to grow. Our company has launched its 15.6-inch projected capacitive touch screen, which is designed to meet the strict requirements of end users in various industries.

Product Feature

1.Unparalleled strength and durability
The 15.6-inch touchscreen design of Vewo Touch Technology Company is robust and durable. The thickness of the cover glass is 1.1 millimeters, and the total thickness is 2 ± 0.2 millimeters. It can withstand harsh environments. Its surface hardness reaches 6H, which can effectively prevent scratches and is suitable for application scenarios where the screen may frequently come into contact or face potential wear and tear.

2. Advanced Capacitive Touch Technology

This touchscreen features multi-touch functionality and can be customized according to your specific needs. The advanced capacitive touch technology has a light transmittance of ≥85%, providing a smooth and sensitive touch experience. The ILI2302M circuit board ensures stable performance, and the touchscreen can accurately detect touch actions, enabling users to interact with the device efficiently.

3.High - Quality Materials and Structure

Constructed with a glass lens + ITO sensor + FPC structure, this touch screen is made of chemical reinforcement materials. The use of high - quality materials not only contributes to its durability but also ensures excellent performance. The cover glass dimension of 373.63±0.3233.34±0.3 mm and cover lens VA of 344.16193.59 mm provide a large and clear display area, while the film sensor thickness of 0.7 mm and SCA of 0.2 mm are optimized for touch sensitivity and signal transmission.

Product Parameter

Product name	15.6 Inch projected capacitive touch screen
Brand Name	WIWOTOUCH
Touch type	Multi touch(can be customized)
Application	Smart control, Medical, Industrial control, etc
Material	Chemical Reinfocement
Interface type	USB
Color	Black
Structure	Glass Lens+ITO sensor+FPC
Cover Glass Dimension	373.63±0.3*233.34±0.3 mm
Cover Lens VA	344.16*193.59 mm
Cover Lens Thickness	1.1 mm
Film sensor Thickness	0.7 mm
SCA	0.2 mm
Total Thickness	2±0.2 mm
LCD resolution	TBD(As you need)
IC Model	ILI2302M
FPC	4 PIN
Transmittance	≥85%
Surface Hardness	6 H
Operating Environment	-20℃~+70℃,≤90%RH
Storage Environment	-30℃~+80℃,≤90%RH
Operating Voltage	2.8 V-3.3 V
Interface Voltage	2.8 V-3.3 V
Surface treatment	As you need
General Tolerance	±0.2mm
Available operating systems	Android/Linux/Windows/Raspberry PI
Certificates	RoHS/Reach/ISO9001
Sample delivery	15 working days
Mass production delivery	2-4 weeks, according to customer requirements, the delivery time is slightly changed
Guarantee period	12 months
Packing	Plastic tray or antistatic bag or foam box or vacuum bag + carton

Product Application

The 15.6 - inch touch screen has a wide range of applications. In the field of smart control, it can be used in home automation systems, allowing users to easily control various devices with a simple touch. In the medical industry, it can be integrated into medical equipment such as diagnostic devices and patient monitors, providing medical staff with a user - friendly interface for data input and operation. For industrial control, it is an ideal choice for controlling industrial machinery, enabling operators to manage complex processes with precision.
