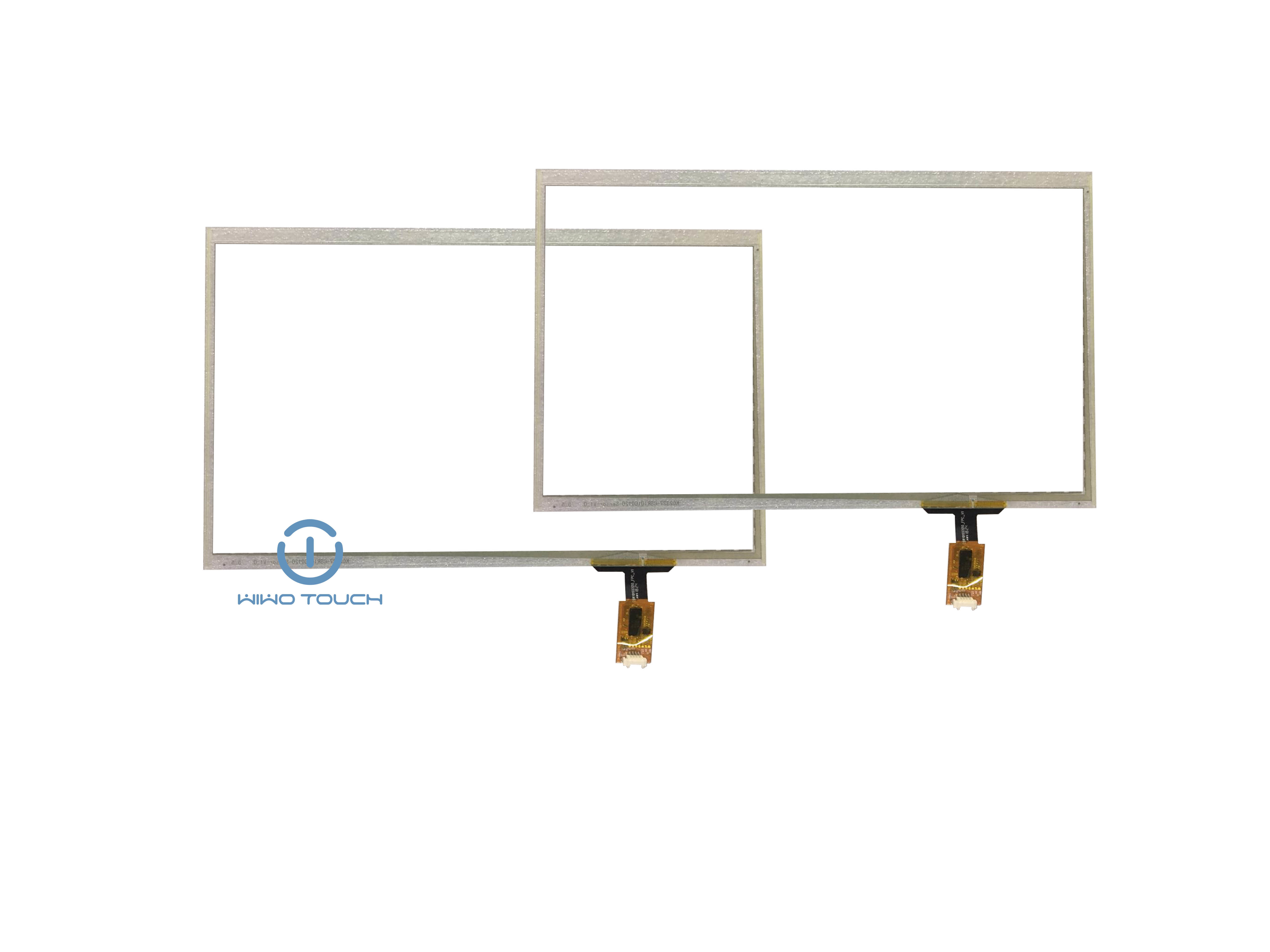

Industrial-grade 10.1-inch capacitive touch screen

Category:

1.Model number: CSR101GG120 2.Application: Smart control, Medical equipment, Industrial control, etc 3.Structure: Glass Lens + ITO glass sensor+FPC 4.Touch type: Multi touch(can be customized) 5. Certificates: Reach, RoHS, ISO9001

Description

Product Feature

High-quality materials: Utilizing Asahi Glass Longji Glass, it possesses excellent wear resistance and impact resistance, significantly enhancing the durability of the product and reducing the replacement cost for customers during long-term use.
Precise touch control: Supports multi-touch and is customizable. Combined with the high-performance FT5826SWL chip, it achieves precise touch response, meeting the strict requirements for operation accuracy in industrial control and other fields.
High compatibility: Suitable for various operating systems such as Android, Linux, Windows, and Raspberry PI, facilitating customers' integration into different device systems, reducing development difficulty and time cost.
Wide temperature range operation: Can operate stably within the temperature range of -20℃ to +70℃. Whether in a cold storage environment or a hot industrial production workshop, it ensures the normal operation of the equipment and improves its applicability.
Strict certifications: Obtained multiple certifications such as RoHS, Reach, and ISO9001, providing comprehensive quality assurance from environmental standards to quality management systems, ensuring product quality and allowing customers to purchase with peace of mind.

Product Parameter

Product name	10.1 Inch projected capacitive touch screen
Brand Name	WIWOTOUCH
Touch type	Multi touch(can be customized)
Application	Smart control, Medical, Industrial control, etc
Material	Asahi Dragon Trail
Interface type	USB
Color	Black

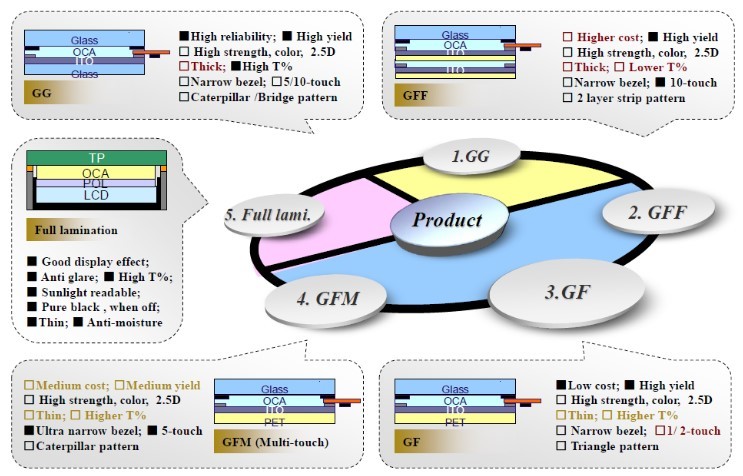

Structure	Glass Lens+ITO sensor+FPC
Cover Glass Dimension	234.4±0.2*142.4±0.2 mm
Cover Lens VA	223.52*126.08 mm
Cover Lens Thickness	1.1 mm
Film sensor Thickness	0.55 mm
SCA	0.2 mm
Total Thickness	1.85±0.1 mm
LCD resolution	TBD(As you need)
IC Model	FT5826SWL
FPC	4 PIN
Transmittance	≥86%
Surface Hardness	6 H
Operating Environment	-20℃~+70℃,≤90% RH
Storage Environment	-30℃~+80℃,≤90% RH
Operating Voltage	2.8 V-3.3 V
Interface Voltage	2.8 V-3.3 V
Surface treatment	As you need
General Tolerance	±0.2mm
Available operating systems	Android/Linux/Windows/Raspberry PI
Certificates	RoHS/Reach/ISO9001
Sample delivery	15 working days
Mass production delivery	2-4 weeks, according to customer requirements, the delivery time is slightly changed
Guarantee period	12 months
Packing	Plastic tray or antistatic bag or foam box or vacuum bag + carton

Related Services

Sample Service: We offer a fast sample delivery service. Samples can be delivered to you within approximately 15 working days, allowing you to conduct product testing and evaluation conveniently.
Batch Production: The delivery time for batch production is 4-5 weeks. We can also adjust it according to the customer's urgent needs to ensure that your project progress is not affected.
Quality Assurance: The product comes with a 12-month warranty period. During the warranty period, if there are any quality issues, our professional team will provide services to reduce your procurement risks.
Packaging Safety: The products are packaged using plastic pallets, anti-static bags, foam boxes or vacuum bags with paper boxes to ensure that the products are not damaged during transportation and to guarantee the safe delivery of your procurement results.

If you are looking for a high-performance and reliable 10.1-inch capacitive touch screen for your project, the product from IWOTOUCH will be your ideal choice. Contact us immediately to learn more about the product information and procurement details and embark on an efficient and high-quality procurement cooperation journey.
