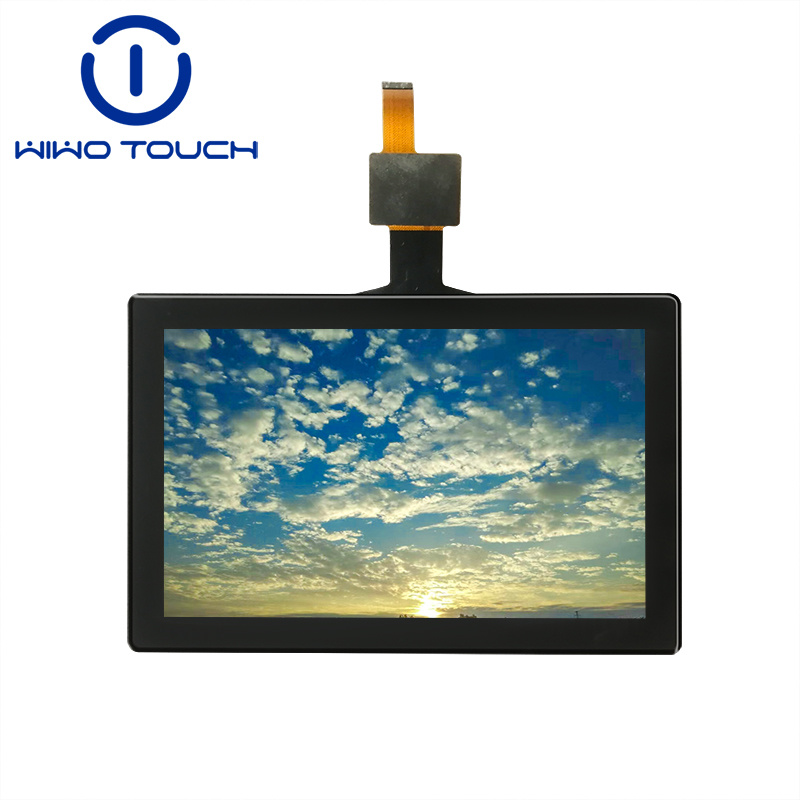

5 inch capacitive touch panel for industrial control
1.Model number: CTL050FF0360-V1.0 2.Application: Handheld device, Medical equipment, Industrial control, etc 3.Structure: Glass Lens + ITO glass sensor+FPC 4.Touch type: Multi touch(can be customized) 5. Certificates: Reach, RoHS, ISO9001
Description
Product Feature
1. High-Quality Materials
Crafted from soda-lime material, this touch screen combines exceptional durability with reliable performance. The robust structure, consisting of a glass lens, film sensor, and FPC, is designed to withstand the rigors of industrial environments. The cover glass, with dimensions of 125.1±0.181.9±0.1 mm and a thickness of 0.7 mm, provides a scratch-resistant surface that can endure daily wear and tear. Its cover lens VA of 108.865.6 mm ensures a generous active viewing area for clear and precise operation.
The 0.425 mm thick glass sensor, paired with an SCA of 0.175 mm, contributes to the total thickness of 1.3±0.1 mm, resulting in a compact yet highly functional design that fits seamlessly into various industrial equipment enclosures.
2.Operating Systems
Our 5 inch capacitive touch screen boasts broad compatibility with a wide range of operating systems, including Android, Linux, Windows, and Raspberry PI. This versatility allows for easy integration into your existing systems, reducing development time and costs, and enabling seamless operation across different industrial platforms.
Product Parameter
| Product name | 5 Inch projected capacitive touch screen |
| Brand Name | WIWOTOUCH |
| Touch type | Multi touch(can be customized) |
| Application | Smart control, Handheld device, Industrial control, etc |
| Material | Sodalime |
| Interface type | IIC |
| Color | Black |
| Structure | Glass Lens+Film sensor+FPC |
| Cover Glass Dimension | 125.1±0.1*81.9±0.1 mm |
| Cover Lens VA | 108.8*65.6 mm |
| Cover Lens Thickness | 0.7 mm |
| Glass sensor Thickness | 0.425 mm |
| SCA | 0.175 mm |
| Total Thickness | 1.3±0.1 mm |
| LCD resolution | TBD(As you need) |
| IC Model | FT7311 |
| FPC | 6 PIN |
| Transmittance | ≥85% |
| Surface Hardness | 6 H |
| Operating Environment | -20℃~+70℃,≤90%RH |
| Storage Environment | -30℃~+80℃,≤90%RH |
| Operating Voltage | 2.8 V-3.3 V |
| Interface Voltage | 2.8 V-3.3 V |
| Surface treatment | As you need |
| General Tolerance | ±0.2mm |
| Available operating systems | Android/Linux/Windows/Raspberry PI |
| Certificates | RoHS/Reach/ISO9001 |
| Sample delivery | 15 working days |
| Mass production delivery | 2-4 weeks, according to customer requirements, the delivery time is slightly changed |
| Guarantee period | 12 months |
| Packing |
Plastic tray or antistatic bag or foam box or vacuum bag + carton |
Customization Options:
- • PCAP size from 0.6”-43”
- • Multi Touch (The touch screen can be customized according to your needs.)
- • Optical Bonding service/Air bonding
- • LCD Interface: HDMI/RGB/MIPI/LVDS
- • PCAP Interface: IIC/USB interface
- • CTP can be Customized with cover glass surface treatment process AG(anti-glare), AR(anti-reflective), AF(anti-fingerprint), Water-proof, Glove Touch
- • Support touch with 0.55 mm-12 mm cover glass.
- • Support operating temperature: -30℃-90℃.
Flexible Packaging Options
To protect your investment during transit, we offer a variety of packaging options, including plastic trays, antistatic bags, foam boxes, or vacuum bags, all packed in a sturdy carton.
