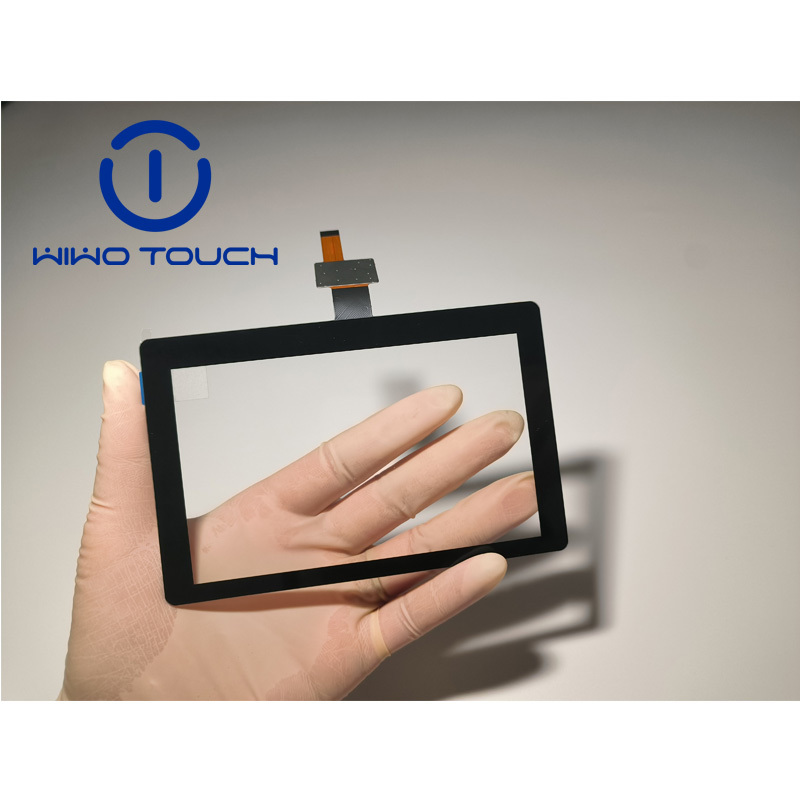

5 inch Touchscreen Panel for Smart Home
1. Model number of quality 5 inch touch screen: 089ACTL050GG-V2.0 2. Structure: Glass Lens+ITO Glass+FPC 3. Touch type: Single-touch or Multi touch 4. Application: Smart control, Industrial, Intelligent robots, Handheld device, etc 5. Interface type: IIC control 6. Color: Black
Description
Product Advantages
- Flexible Touch Options: Supports single-touch or multi-touch functionality, compatible with Android, Linux, and Windows operating systems for seamless integration into smart home control systems.
- Industrial-Grade Durability: Boasts a surface hardness of 6H and AR/AF/AG/waterproof surface treatments, ensuring resistance to scratches, fingerprints, and glare. Operates reliably in extreme environments (-20℃~+70℃, 20~85%RH) and stores safely at -30℃~+80℃.
- High Transmittance & Precision: With ≥85% transmittance and ±0.2mm general tolerance, the panel guarantees clear visibility and accurate touch response—ideal for smart home dashboards and industrial control interfaces.
- Customization Capabilities: Offers adjustable LCD resolution, IIC interface, and 6 PIN FPC to meet unique project requirements. Surface treatments (AR/AF/AG) can be tailored to specific use cases.
Product Parameter
Constructed with a Glass Lens+ITO Glass+FPC structure (total thickness 1.48±0.15mm) and powered by the FT7311 IC, this panel operates at 2.8V-3.3V. It meets global compliance standards (RoHS/Reach) and ensures long-term performance with a 12-month guarantee.
| Product name | 5 inch touch screen |
| Brand Name | WIWOTOUCH |
| Touch type | Single touch or Multi touch |
| Application | Industrial, Handheld device, Smart control, and Intelligent robots, etc |
| Interface type | IIC |
| Structure | Glass Lens+ITO Glass+FPC |
| Cover Glass Dimension | 126.2±0.2*81.2±0.2 mm |
| Cover Lens VA | 108.8*65.6 mm |
| Cover Lens Thickness | 0.7 mm |
| ITO Glass Thickness | 0.4 mm |
| Total Thickness | 1.48±0.15 mm |
| LCD resolution | TBD (As you need) |
| FPC | 6 PIN |
| IC Model | FT7311 |
| Transmittance | ≥85% |
| Surface Hardness | 6H |
| Operating Environment | -20℃~+70℃,≤20~85%RH |
| Storage Environment | -30℃~+80℃,≤10~85%RH |
| Operating Voltage | 2.8 V-3.3 V |
| Interface Voltage | 2.8 V-3.3 V |
| Surface treatment | AR(Anti-reflective); AF(Anti-fingerprint); AG(Anti-glare); waterproof |
| General Tolerance | ±0.2mm |
| Available operating systems | Android/Linux/Windows |
| Certificates | RoHS/Reach/ISO9001 |
| Sample delivery | 15 working days |
| Mass production delivery | 2-4 weeks, according to customer requirements, the delivery time is slightly changed |
| Guarantee period | 12 months |
| Packing | Plastic tray or antistatic bag or foam box or vacuum bag + carton |
Procurement & Delivery
- Sample Availability: Get test samples within 15 working days to validate compatibility.
- Bulk Production: Mass orders shipped in 2-4 weeks (adjustable per volume requirements).
- Packaging Options: Customizable with plastic trays, antistatic bags, foam boxes, or vacuum packaging to ensure safe transit.
