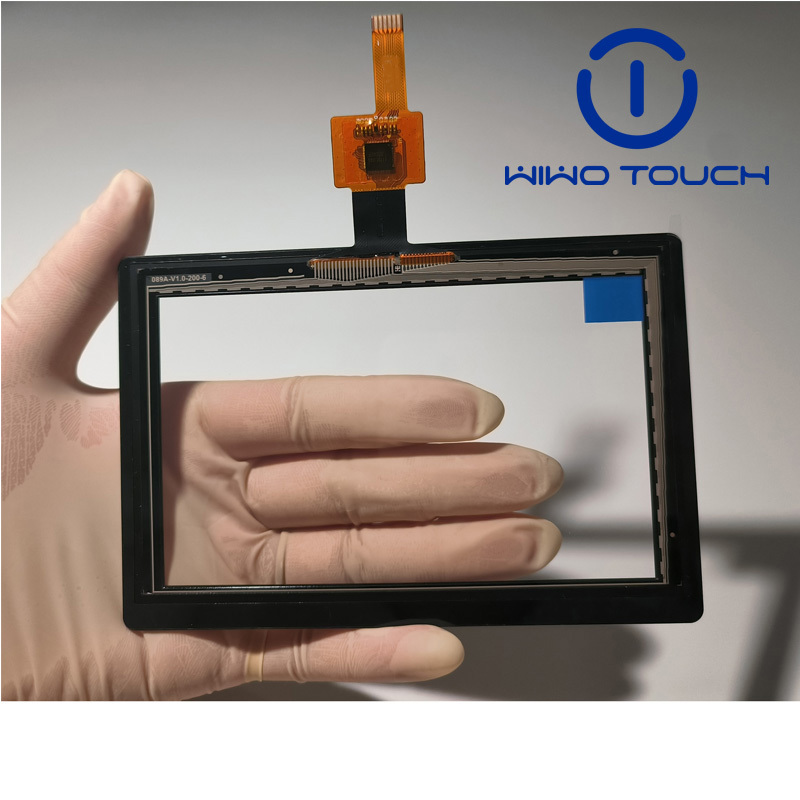

5 inch ant-bacterial capacitive touch panel for medical device

Category:

1.Model number: 240ACTL050GG-V1.0 2.Application: Smart home, Electrical appliance, Medical, POS, etc 3.Structure: Cover lens+Double Film sensor+FPC 4.Touch type: Multi touch 5.Certificates: RoHS, Reach, ISO9001

Description

Product Feature

Antibacterial Surface: achieving 99.9% bacterial reduction, effectively reducing the risk of cross - contamination in medical environments.
High Transmittance: ≥85% with AR coating, ensuring clear display even in various lighting conditions.
Excellent Protection: IP65 waterproof and dustproof, capable of withstanding chemical splashes and harsh environments.
Wide Operating Temperature Range: -20℃~+70℃, suitable for use in extreme temperature environments such as hospitals and industrial sites.
Reliable Certifications: RoHS, Reach, ISO9001 certified, meeting international quality and environmental standards.
Versatile Interface: IIC interface, compatible with Android, Linux, and Windows operating systems, facilitating integration into various devices.

Product Parameter

Product name	5 inch Anti-bacterial touch screen
Brand Name	WIWOTOUCH
Touch type	Single touch or Multi touch
Application	Industrial, Handheld device, Smart control, and Medical, etc
Interface type	IIC
Structure	Glass Lens+ITO Glass+FPC
Cover Glass Dimension	128.6±0.1*85.4±0.1 mm
Cover Lens VA	108.6±0.15*65.6±0.15 mm
Cover Lens Thickness	0.7 mm
ITO Glass Thickness	0.4 mm
Total Thickness	1.48±0.1 mm
LCD resolution	800*480
FPC	6 PIN
IC Model	FT7311
Transmittance	≥85%
Surface Hardness	6H
Operating Environment	-20℃~+70℃,≤20~85%RH
Storage Environment	-30℃~+80℃,≤10~85%RH
Operating Voltage	2.8 V-3.3 V
Interface Voltage	2.8 V-3.3 V
Surface treatment	AR(Anti-reflective); AF(Anti-fingerprint); AG(Anti-glare); waterproof
General Tolerance	±0.2mm
Available operating systems	Android/Linux/Windows
Certificates	RoHS/Reach/ISO9001
Sample delivery	15 working days
Mass production delivery	2-4 weeks, according to customer requirements, the delivery time is slightly changed
Guarantee period	12 months
Packing	Plastic tray or antistatic bag or foam box or vacuum bag + carton

Application

Hospital Monitoring Systems: The antibacterial surface and high transmittance make it ideal for use in ICU monitors, ensuring clear data display and reducing the spread of bacteria.

Portable Diagnostic Tools: With its compact size and wide operating temperature range, it can be easily integrated into portable medical devices for on - site diagnosis.

Industrial Control Panels: IP65 protection and resistance to extreme temperatures allow it to work stably in factory environments, suitable for CNC machines and smart controls.

Smart Handheld Devices: Compatible with multiple operating systems, it provides a smooth touch experience for handheld industrial tools.

Customization Options

We offer a variety of customizable options to meet different customer needs. You can choose glass thickness (0.7mm standard, 0.5mm - 1.1mm available), interface types (IIC, USB), and logo engraving.

Purchase Information

Request a Sample: We can deliver samples within 15 working days.

Bulk Order: Get a wholesale quote for bulk orders. Mass production delivery is within 4 weeks, and rush orders are available for urgent projects.

Warranty Period: 12 months.

Packaging: Plastic tray or antistatic bag or foam box or vacuum bag + carton. Global shipping via DHL/FedEx, with antistatic packaging to prevent ESD damage during transit.
