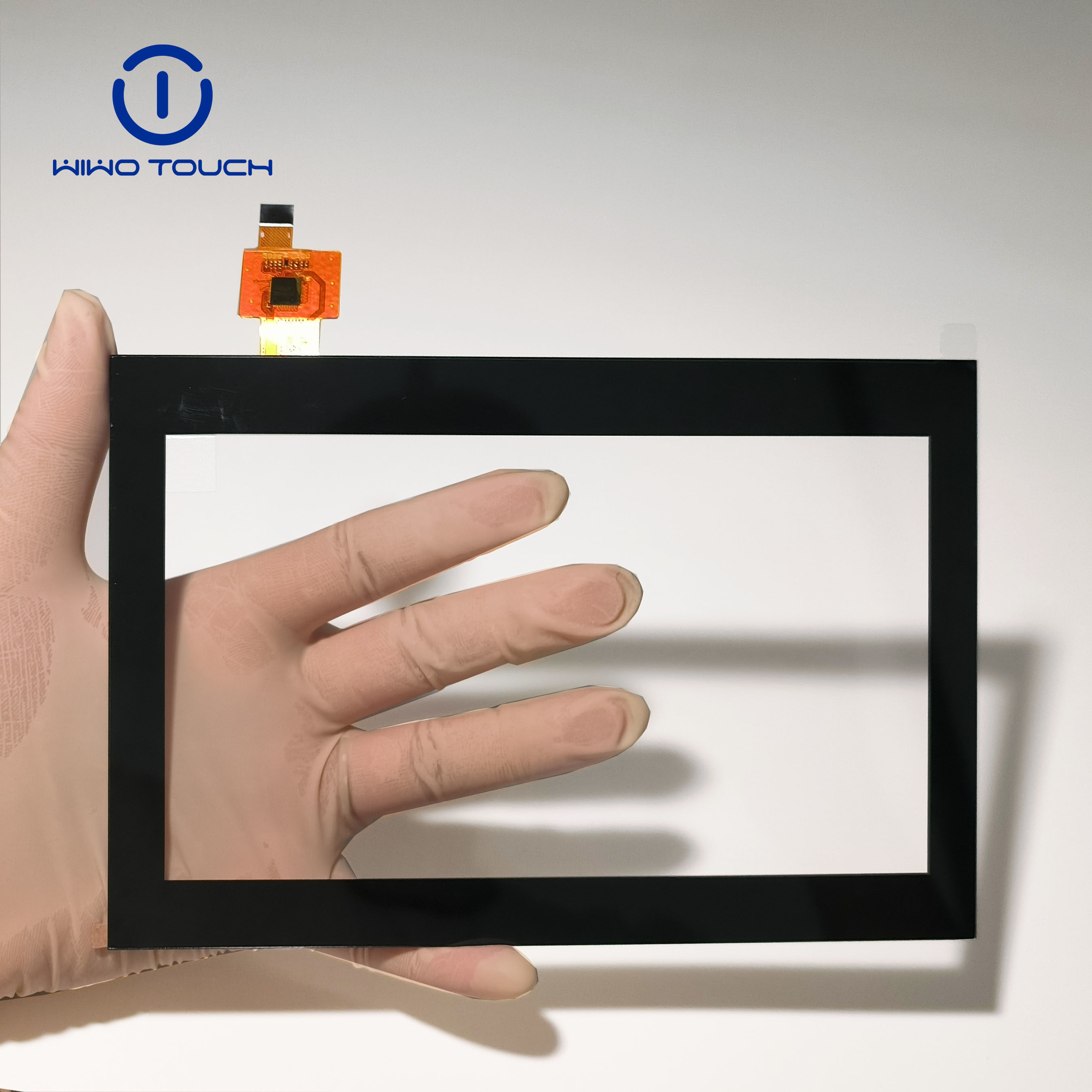

7 inch vehicle navigation capacitive touch panel
1. Model number of quality 5 inch touch screen: 115ACTL070GG-V1.0 2. Structure: Glass Lens+ITO Glass+FPC 3. Touch type: Single-touch or Multi touch 4. Application: Smart control, Industrial, Intelligent robots, Handheld device, etc 5. Interface type: IIC control 6. Color: Black
Description
Product Feature
- Superior Touch Technology: Adopting advanced PCAP 10 - point touch technology, the response speed is less than 5ms. It supports glove operation, ensuring accurate and smooth touch control even in different usage scenarios.
- High Transmittance and Durability: With a transmittance of ≥83% (equipped with AR coating), the touch panel offers clear visual effects. The surface hardness reaches 6H, making it resistant to scratches and suitable for frequent operation.
- Wide Temperature Adaptability: The operating environment ranges from - 20℃ to + 70℃ with a humidity of ≤90%RH, and the storage environment is from - 30℃ to + 80℃ with a humidity of ≤90%RH. It can meet the harsh requirements of car dashboards and other automotive applications.
- Excellent Surface Treatment: The surface is treated with AR (Anti - reflective), AF (Anti - fingerprint), AG (Anti - glare) and waterproof coatings, effectively reducing reflection, preventing fingerprints, reducing glare, and ensuring normal operation in humid environments.
Product Parameter
| Product name | 7 inch capacitive touch screen |
| Brand Name | WIWOTOUCH |
| Touch type | PCAP 10 points touch |
| Application | Industrial, Handheld device, Smart control, etc |
| Interface type | IIC/USB |
| Structure | Glass Lens+ITO Glass+FPC |
| Cover Glass Dimension | 176.42±0.2*115.7±0.2 mm |
| Cover Lens VA | 155.08±0.2*86.92±0.2 mm |
| Cover Lens Thickness | 0.7±0.1 mm |
| ITO Glass Thickness | 0.7 mm |
| Total Thickness | 1.80±0.2 mm |
| LCD resolution | 1024*600 |
| FPC | 6 PIN |
| IC Model | FT7311 |
| Transmittance | ≥83% |
| Surface Hardness | 6H |
| Operating Environment | -20℃~+70℃,≤90%RH |
| Storage Environment | -30℃~+80℃,≤90%RH |
| Operating Voltage | 2.8 V-3.3 V |
| Interface Voltage | 2.8 V-3.3 V |
| Surface treatment | AR(Anti-reflective); AF(Anti-fingerprint); AG(Anti-glare); waterproof |
| General Tolerance | ±0.2mm |
| Available operating systems | Android/Linux/Windows |
| Certificates | RoHS/Reach/ISO9001 |
| Sample delivery | 15 working days |
| Mass production delivery | 2-4 weeks, according to customer requirements, the delivery time is slightly changed |
| Guarantee period | 12 months |
| Packing | Plastic tray or antistatic bag or foam box or vacuum bag + carton |
Application Scenarios

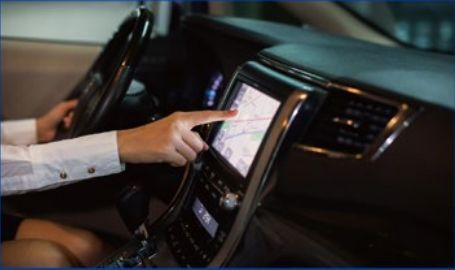

- Automotive Field: Central control navigation screens, instrument panels, rear - seat entertainment systems. This 7 inch capacitive touch panel for car is perfectly suitable for these applications, providing precise and responsive touch control for a better driving experience.
- Industrial Control: Smart devices, medical instruments, engineering machinery operation panels. Its reliable performance and wide operating temperature range make it an ideal choice for industrial environments.
- Intelligent Terminals: POS machines, self - service terminals, smart home central control systems. The high transmittance and excellent surface treatment ensure clear display and easy operation.
Certifications And Compliance
Our 7 inch capacitive touch panels for car have obtained RoHS/Reach/ISO 9001 certifications. These certifications ensure that our products meet EU environmental standards and automotive reliability requirements, giving purchasers peace of mind when choosing our products. We can provide certificate pictures for verification.
Delivery And Services
- Sample Delivery: 15 working days with test reports to ensure that purchasers can test and verify the performance of the product in a timely manner.
- Mass Production Delivery: 2 - 4 weeks, and can be expedited according to customer requirements. We will adjust the delivery time slightly based on specific needs to meet the production schedules of purchasers.
- Guarantee Period: 12 months, providing reliable after - sales support.
- Packing Options: Plastic tray, antistatic bag, foam box, vacuum bag + carton. We can choose the appropriate packaging according to the transportation needs and requirements of purchasers to ensure the safe delivery of products.
