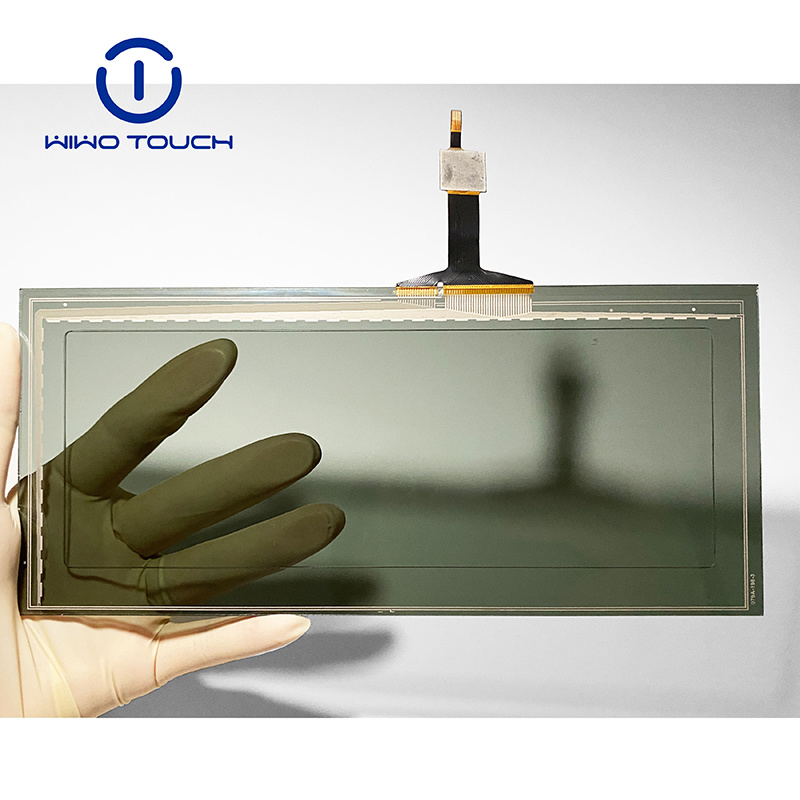

8.8-Inch Double Cover Glass Capacitive Touch Screen
1. Model number of quality 8.8 inch touch screen: 079ACTL088GG-V1.0 2. Structure: Double glass Lens+ITO Glass+FPC 3. Touch type: Single-touch or Multi touch 4. Application: Smart control, Industrial, Intelligent robots, Handheld device, etc 5. Interface type: IIC control
Description
Product Feature
The 8.8-inch double cover glass capacitive touch screen from WIWOTOUCH is a high-performance product designed for various professional fields. It boasts several outstanding technical features:
- 1.Double Glass Structure (Double Glass Lens + ITO Glass + FPC): Adopting chemically strengthened soda-lime glass, its impact resistance is improved by 30%, making it suitable for extreme environments ranging from -30℃ to 80℃. This structure ensures the product can withstand harsh conditions in industrial and outdoor settings.
- 2.10-point Touch Technology: Driven by the ATMXT640U chip, it has a response speed of ≤5ms and supports glove/wet hand operation, effectively solving the pain points in industrial scenarios where operation under special conditions is required.
- 3.Surface Treatment Combination: Equipped with AR (anti-reflective), AF (Anti-fingerprint), AG (Anti-glare) and waterproof functions, the light transmittance is ≥85%, meeting the requirements of outdoor strong light environments.
Technical Parameters
| Product name | 8.8 inch capacitive touch screen |
| Brand Name | WIWOTOUCH |
| Material | Sodalime, Chemical Reinforcement |
| Touch type | PCAP 10 points touch (Can be customized) |
| Application | Industrial, Handheld device, Smart control, etc |
| Interface type | IIC/USB |
| Structure | Double glass Lens+ITO Glass+FPC |
| Cover Glass2 Dimension | 229.59±0.2*97.41±0.2 mm |
| Cover Glass1 Dimension | 201.07±0.2*70.51±0.2 mm |
| Cover Lens VA | 200.27±0.2*69.71±0.2 mm |
| Cover Glass2 Thickness | 1.1±0.2 mm |
| Cover Glass1 Thickness | 1.8±0.2 mm |
| ITO Glass Thickness | 0.7 mm |
| Total Thickness | 9.85±0.3 mm (With LCM) |
| LCD resolution | 1280*480 |
| FPC | 6 PIN |
| IC Model | ATMXT640U |
| Transmittance | ≥85% |
| Surface Hardness | 6H |
| Operating Environment | -30℃~+80℃,≤90%RH |
| Storage Environment | -30℃~+80℃,≤90%RH |
| Operating Voltage | 2.8 V-3.3 V |
| Interface Voltage | 2.8 V-3.3 V |
| Surface treatment | AR(Anti-reflective); AF(Anti-fingerprint); AG(Anti-glare); waterproof |
| General Tolerance | ±0.2mm |
| Available operating systems | Android/Linux/Windows |
| Certificates | RoHS/Reach/ISO9001 |
| Sample delivery | 15 working days |
| Mass production delivery | 2-4 weeks, according to customer requirements, the delivery time is slightly changed |
| Guarantee period | 12 months |
| Packing | Plastic tray or antistatic bag or foam box or vacuum bag + carton |
Application Scenarios
1.Industrial Control Field:
- Anti-vibration design (buffer material filled in the glass interlayer), meeting ISO 16750-3 vehicle vibration standards.
- Supports Modbus protocol secondary development, compatible with Siemens/Mitsubishi PLC systems, which is very suitable for industrial control panels. For bulk purchase of industrial control touch screens, our 8.8-inch double cover glass capacitive touch screen is your ideal choice.
2.Handheld Device Field:
- Supports glove operation (compatible with 10mm thickness), meeting the needs of cold chain logistics/outdoor operations. If you need a high-performance touch screen for handheld devices, our product can be customized according to your requirements.
3.Smart Control Field:
- Provides customized driver programs, supporting seamless integration of Windows 11/Android 13 systems, applicable to smart home touch modules.
Customization & Procurement Support
- Tailored Solutions: Customize touch points, surface treatments (AR/AF/AG combinations), and interface types to meet specific project needs.
- Certifications: Compliant with RoHS/Reach/ISO9001 standards, ensuring global market access for bulk purchases.
- Fast Delivery: Sample delivery within 15 working days; mass production lead time: 4 weeks (adjustable based on order volume).
- Quality Assurance: 12-month warranty with a 0.3% maximum defect rate, backed by rigorous testing.
