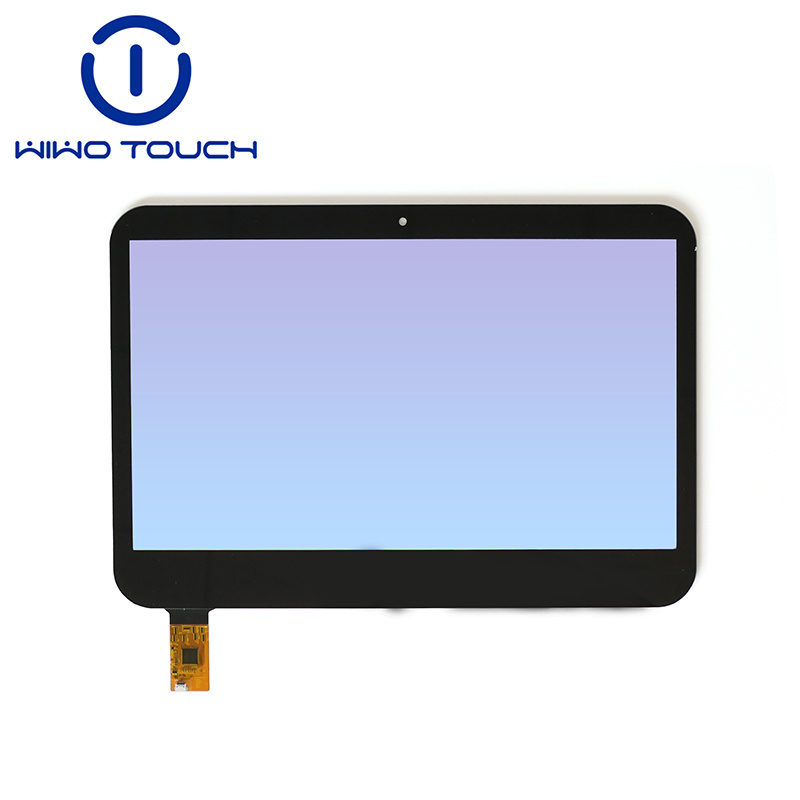

15.6 inch capacitive touch screen for Kiosk

Category:

NO.: 304ACLL156GG-V2.0-TP Type: LCD + capacitive touch panel Structure: LCD + Cover Glass+ ITO Glass Touch panel IC interface: USB Controller board: ILI2511

Description

Product Feature

Touch Type: With multi - touch functionality (customizable to meet your specific needs), this touch screen offers seamless interaction. Whether it's for industrial control, medical applications, or smart control systems, the multi - touch feature enables intuitive operation, enhancing user experience.

Material: Made of Chemical Reinfocement, the touch screen is durable and resistant to various environmental factors. This ensures a long - lasting product that can withstand the rigors of different applications.

Interface Type: The USB interface provides easy connectivity and high - speed data transfer. It is compatible with a wide range of devices, making it a versatile choice for your projects.
Structure: Comprising Glass Lens + ITO sensor + FPC, this touch screen is designed with precision. The Glass Lens offers protection, while the ITO sensor ensures accurate touch detection, and the FPC enables efficient signal transmission.

Product Parameter

Product name	15.6 Inch projected capacitive touch screen
Brand Name	WIWOTOUCH
Touch type	Multi touch(can be customized)
Application	Smart control, Medical, Industrial control, etc
Material	Chemical Reinfocement
Interface type	USB
Color	Black
Structure	Glass Lens+ITO sensor+FPC
Cover Glass Dimension	370.66±0.15*253.25±0.15 mm
Cover Lens VA	344.96*194.39 mm
Cover Lens Thickness	1.8 mm
Film sensor Thickness	0.55 mm
SCA	0.2 mm
Total Thickness	3.2±0.2 mm
LCD resolution	TBD(As you need)
IC Model	ILI2511
FPC	6 PIN
Transmittance	≥85%
Surface Hardness	6 H
Operating Environment	-20℃~+70℃,≤90%RH
Storage Environment	-30℃~+80℃,≤90%RH
Operating Voltage	2.8 V-3.3 V
Interface Voltage	2.8 V-3.3 V
Surface treatment	As you need
General Tolerance	±0.2mm
Available operating systems	Android/Linux/Windows/Raspberry PI
Certificates	RoHS/Reach/ISO9001
Sample delivery	15 working days
Mass production delivery	2-4 weeks, according to customer requirements, the delivery time is slightly changed
Guarantee period	12 months
Packing	Plastic tray or antistatic bag or foam box or vacuum bag + carton

Product Appliaction

Smart Control: Ideal for smart home systems, this touch screen allows for easy control of various devices. The intuitive multi - touch interface enables users to manage lighting, temperature, and security systems with a simple touch.

Medical: In the medical field, accuracy and reliability are crucial. Our touch screen can be used in medical equipment such as patient monitors, diagnostic devices, and hospital information systems. The chemical reinfcement material ensures it can withstand the sterile and often harsh medical environment.

Industrial Control: For industrial applications, the 15.6 - inch touch screen is a perfect fit. It can be used in control panels for manufacturing equipment, robotics, and process control systems. The wide operating temperature range (-20℃~+70℃) and high surface hardness make it suitable for industrial use.

Optional Surface Treatment

We understand that different applications may require different surface treatments. That's why we offer surface treatment options as per your needs. Whether it's for anti - glare, anti - fingerprint, or other specific requirements, we can customize the surface to meet your exact needs.

Certifications and Quality Assurance

This 15.6 - inch touch screen comes with certifications such as RoHS, Reach, and ISO9001. These certifications are a testament to the high - quality standards that we adhere to during the manufacturing process. When you procure from us, you can be confident in the quality and compliance of the product.
